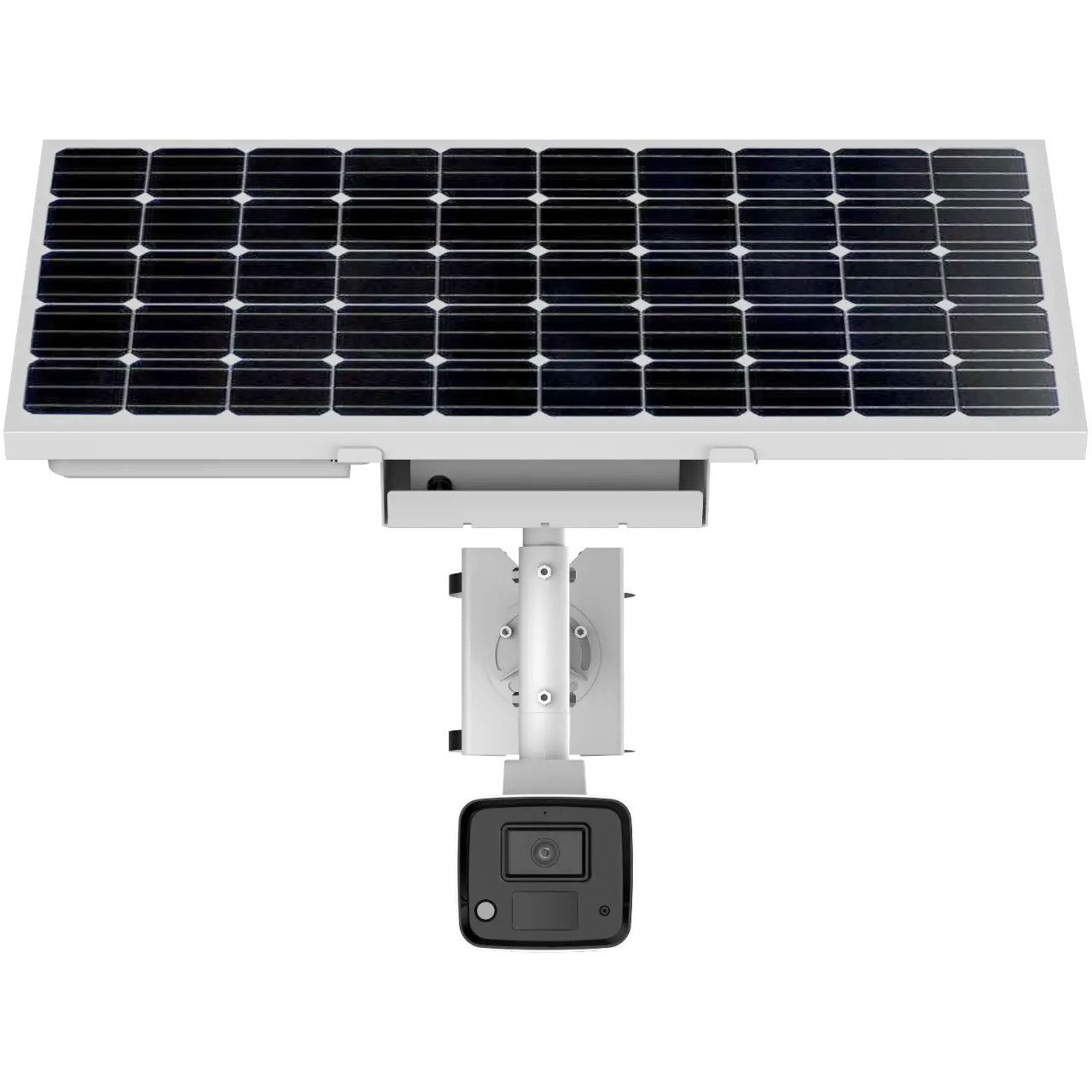

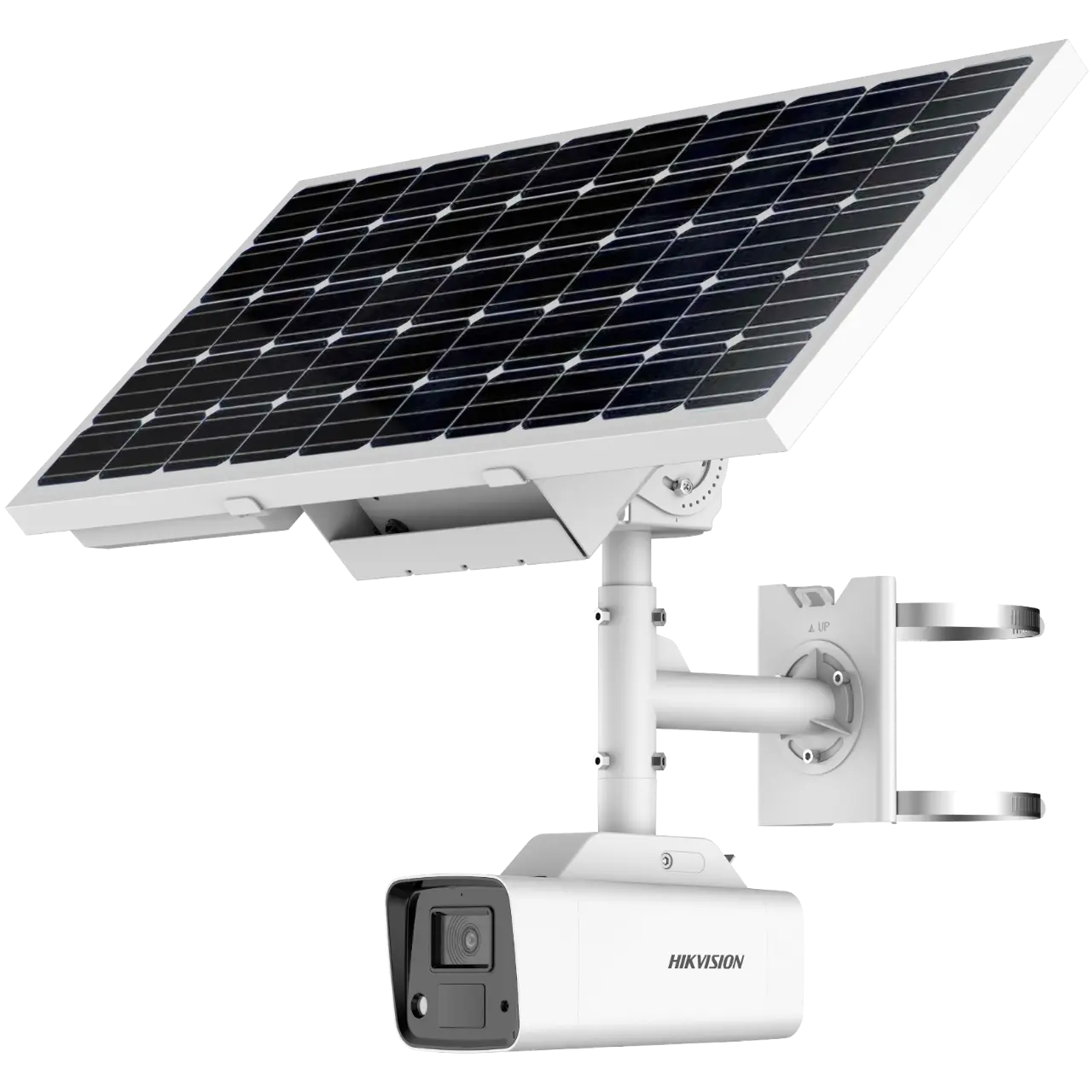

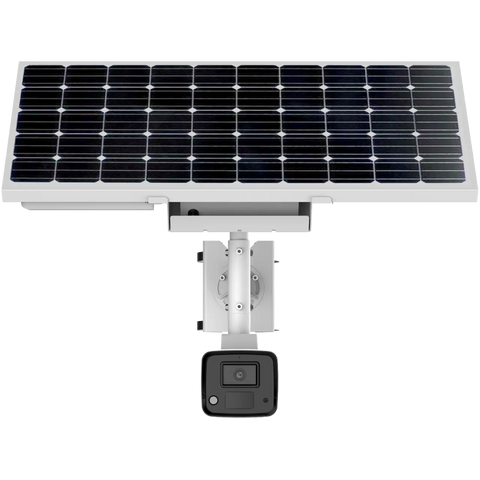

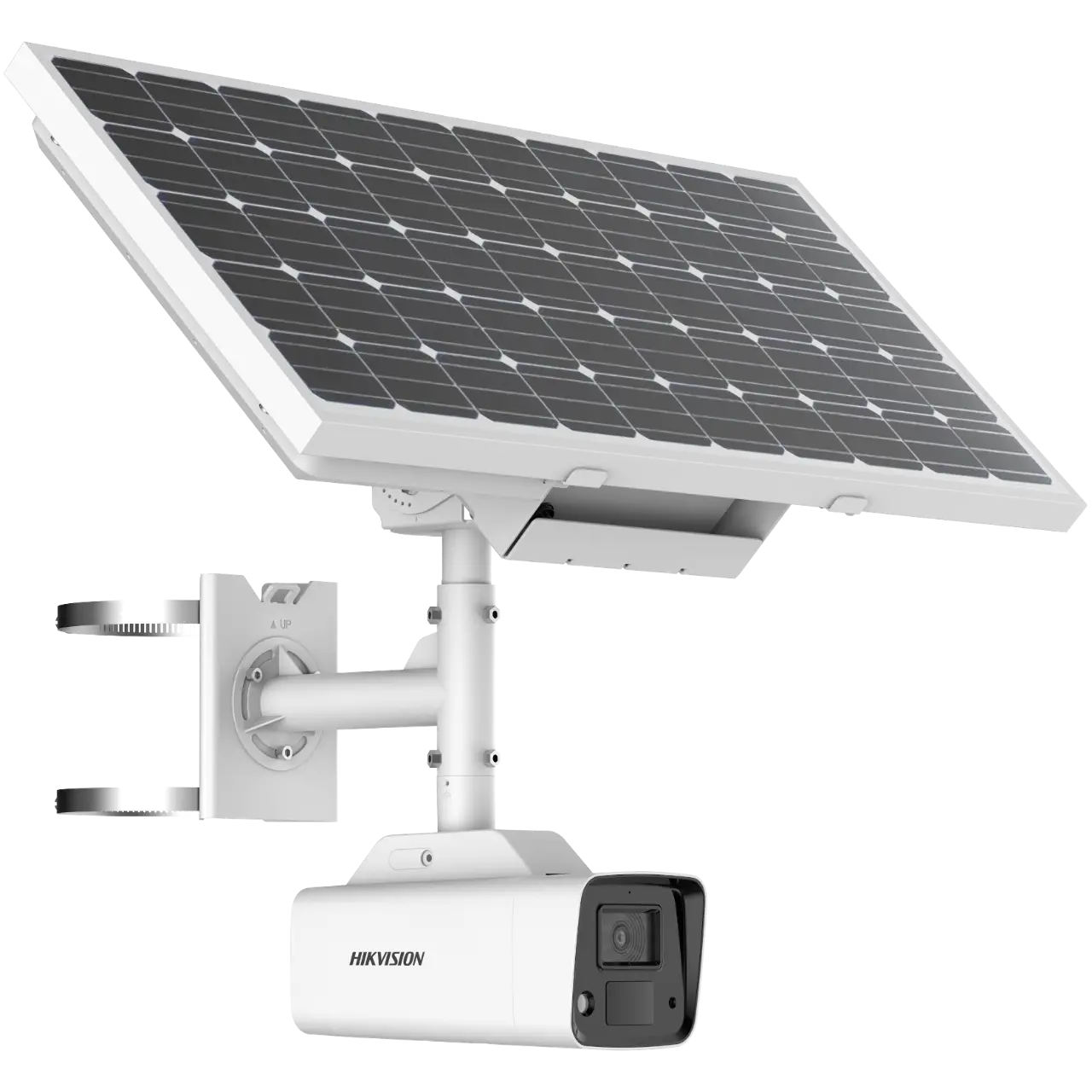

4MP ColorVu Solar-powered Security Camera Setup DS-2XS2T47G1
4MP ColorVu Solar-powered Security Camera Setup DS-2XS2T47G1
4MP ColorVu Solar-powered Security Camera Setup DS-2XS2T47G1

4MP ColorVu Solar-powered Security Camera Setup DS-2XS2T47G1

SKU: DS-2XS2T47G1
$1,802.99
$1,802.99
$2,403.99

Fast, Free Shipping.

30-Day Money-Back Guarantee.

Lifetime Customer Support.

4MP ColorVu Solar-powered Security Camera Setup DS-2XS2T47G1

4MP ColorVu Solar-powered Security Camera Setup DS-2XS2T47G1

$2,403.99 $1,802.99
4MP ColorVu Solar-powered Security Camera Setup DS-2XS2T47G1
4MP ColorVu Solar-powered Security Camera Setup DS-2XS2T47G1
4MP ColorVu Solar-powered Security Camera Setup DS-2XS2T47G1

4MP ColorVu Solar-powered Security Camera Setup DS-2XS2T47G1

$2,403.99 $1,802.99
  • High quality imaging with 4 MP resolution
  • Standalone with solar panel and built-in battery
  • 24/7 colorful imaging
  • Support Human Detection
  • Efficient H.265+ compression technology
  • Provide real-time security via built-in two-way audio
  • Water and dust resistant (IP67)
  • Stability against category 12 typhoon
  • Support 4G (LTE-TDD/LTE-FDD/TD-SCDMA) communication
Specification
Camera
Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light
Shutter Time 1/3 s to 1/100,000 s
Day & Night 24/7 color imaging
Angle Adjustment Solar Cover: Pan: 0° to 358°, tilt: -40° to 0°
Camera: Pan: 0° to 360°，tilt: -60° to 0°
Lens
Lens Type Fixed focal lens, 4 and 6 mm optional
Iris Type Fixed
Depth Of Field 4 mm: 2.7 m to ∞
6 mm: 5.9 m to ∞
Focal Length & FOV 4 mm, Horizontal FOV: 75°, Vertical FOV: 40°, Diagonal FOV: 89°
6 mm, Horizontal FOV: 49°, Vertical FOV: 27°, Diagonal FOV: 57°
Lens Mount M12
Aperture Range F1.0
DORI
DORI 4 mm, D: 82 m, O: 32 m, R: 16 m, I: 8 m
6 mm, D: 120 m, O: 47 m, R: 24 m, I: 12 m
Illuminator
Supplement Light Range Performance mode: up to 30 m
Proactive mode: up to 10 m
Supplement Light Type White Light
Smart Supplement Light Yes
Video
Main Stream 50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 12.5 fps (1280 × 720，640 × 480, 640 × 360)
60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression Main stream: H.265/ H.264
Sub-stream: H.265/H.264/MJPEG
H.264+ and H.265+: main stream supports under performance mode
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Bit Rate Control VBR/CBR
Scalable Video Coding (SVC) H.265 and H.264 support
Region Of Interest (ROI) 1 fixed region for main stream
Audio
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate 8 kHZ/16 kHz
Environment Noise Filtering Yes
Event
Basic Event Detection Motion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full,HDD error
Linkage Upload to NAS/memory card,notify surveillance center,trigger recording,trigger capture,audible warning
Network
Network Storage Auto network replenishment (ANR)
Protocols TCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
User/Host Up to 32 users3 levels: Administrator, Operator and User
Security Password protection, complicated password, basic and digest authentication for HTTP, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Mobile Communication
Frequency NL668-EU:
LTE-TDD: B38/B40/B41
LTE-FDD: B1/B3/B5/B7/B8/B20/B28
WCDMA: B1/B5/B8
GSM: B3/B5/B8
NL668-LA:
LTE-TDD: B38/B40
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B17/B28/B66
WCDMA:B1/B2/B3/B4/B5/B8
GSM: B2/B3/B5/B8
NL668-US:
LTE-FDD: B2/B4/B5/B12/B13/B17/B66/B71
WCDMA: B2/B4/B5
Uplink And Downlink Data Rate Cat 4, uplink: 50 Mbps, downlink: 150 Mbps
SIM Card Type Micro SIM
Standard LTE-TDD,LTE-FDD,WCDMA,GSM
SNR ≥ 52 dB
Image Settings Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch Day, Night, Auto, Schedule
Wide Dynamic Range (WDR) Digital WDR
Image Enhancement BLC, HLC, 3D DNR
Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB,For eMMC storage, 50 GB is available for recording
Built-in eMMC storage, up to 64 GB
Built-In Microphone Yes
Built-In Speaker Yes
Reset Key Yes
General
Power Supply Power Consumption and Current:
Typical power scenarios: 1.85 W (4 G working)
Standby scenarios: 40 mW
Max. power consumption: 6 W
Power Supply:
12 VDC ± 25% (*For debugging only)
40 W(deviation: ± 2 W) Solar panels
Power Interface:
Power supply interface: Φ5.5 mm coaxial power plug
Extened solar panel: four-core aviation connector
Material ADC12
Dimensions 679 mm × 443 mm × 760 mm (26.7" × 17.4" × 29.9")
Package Dimension 910 mm × 350 mm × 450 mm (35.8" × 13.8" × 17.7")
Weight Approx. 11.570 kg (25.5 lb.)
With Package Weight Approx. 16.21 kg (35.7 lb.)
Storage Conditions  -20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions  -20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing)
General Function Heartbeat,mirror,flash log
Web Client Language 33 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Battery
Battery Type Ternary lithium
Capacity 8.4 Ah × 2 packs
Max. Charging Voltage 12.6 V
Operating Temperature Charge: -20 °C to 45 °C (-4 °F to 113 °F). Charging Condition: -20 °C to 45 °C (-4 °F to 113 °F) (deviation: ± 5 °C)
Discharge: -20 °C to 55 °C (-4 °F to 131 °F)
Discharging Condition: -20 °C to 55 °C (-4 °F to 131 °F) (deviation: ± 5 °C)
Battery Voltage 9 V to 12.6 V
Cycle Lifetime Performance mode: 3.6 days
Proactive mode: 6 day
Standby mode: 30 days
Battery Life More than 500 cycles
Battery Weight Approx. 1400 g (3.1 lb.)
Approval
EMC FCC (47 CFR Part 15, Subpart B);
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
RCM: AS/NZS CISPR 32: 2015
IC: ICES-003: Issue 7
*FCC certification is only for the device sold in the North American region and the Latin American region. IC certification is only for the device sold in the North American region. CE and RCM certifications are only for the device sold in the European region.
RF FCC ID (FCC Part 15.247(BT or 2.4G));
IC ID (RSS-247(BT or 2.4G))
CE-RED: EN 301489-1 V2.1.1 (BT or 2.4G), EN 301489-17 V3.1.1 (BT or 2.4G), EN 300328 V2.1.1 (BT or 2.4G), EN 62311: 2008 (BT or 2.4G)
*FCC certification is only for the device sold in the North American region and the Latin American region. IC certification is only for the device sold in the North American region. CE certification is only for the device sold in the European region.
Safety CB: IEC 62368-1: 2014+A11
CE-LVD: EN 62368-1: 2014/A11: 2017
LOA: IEC/EN 60950-1
*CE and LOA certifications are only for the device sold in the European region.
Environment CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
*CE certification is only for the device sold in the European region.
Protection IP67: IEC 60529-2013
