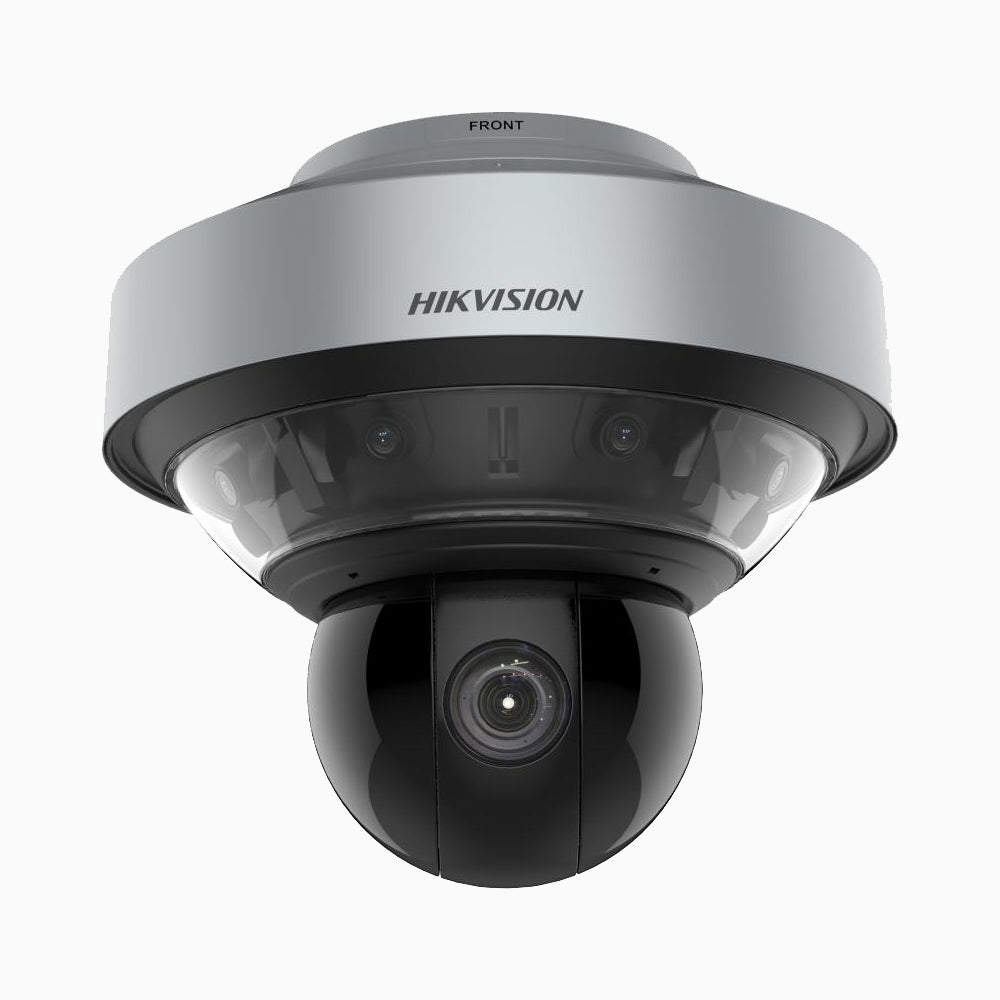

180° Stitched PTZ PoE Security Camera, 4096 × 1800 @30 fps, 40X Optical Zoom, IR Night Vision

180° Stitched PTZ PoE Security Camera, 4096 × 1800 @30 fps, 40X Optical Zoom, IR Night Vision

SKU: DS-2DP0818ZIXS
$3,999.99
$3,999.99

Fast, Free Shipping.

30-Day Money-Back Guarantee.

Lifetime Customer Support.

180° Stitched PTZ PoE Security Camera, 4096 × 1800 @30 fps, 40X Optical Zoom, IR Night Vision

180° Stitched PTZ PoE Security Camera, 4096 × 1800 @30 fps, 40X Optical Zoom, IR Night Vision

$3,999.99
180° Stitched PTZ PoE Security Camera, 4096 × 1800 @30 fps, 40X Optical Zoom, IR Night Vision

180° Stitched PTZ PoE Security Camera, 4096 × 1800 @30 fps, 40X Optical Zoom, IR Night Vision

$3,999.99

High quality imaging with 8 MP resolution, up to 4096 × 1800 @30 fps for panoramic channels
Excellent low-light performance with DarkFighter technology
40x optical zoom and 16x digital zoom provide close up views over expansive areas
Expansive night view with up to 250 m IR distance
With one click on the panoramic channel, the PTZ channel shows the details automatically
Continous and stable manual tracking, auto-tracking, and panorama tracking
Automatic switch between multiple targets
Supports 7 alarm inputs, 2 alarm outputs, 1 audio input, and 1 audio output
This product is suitable for the application scenarios that require expansive monitoring and detail capture, such as airports, stations, stadiums, playgrounds, scenic areas, and
public squares.

Specification

 Download DS-2DP0818ZIXS Specification

Camera Image Sensor [Panoramic channel]: 1/1.8" progressive scan CMOS, [PTZ channel]: 1/1.8" progressive scan CMOS
Min. Illumination [Panoramic channel] Color: 0.0005 Lux (F1.0, AGC ON), B/W: 0.0001 Lux (F1.0, AGC ON);
[PTZ channel]: 0.0005 Lux (F1.2, AGC ON), B/W: 0.0001 Lux (F1.2, AGC ON), 0 Lux with IR
Shutter Speed 1 s to 1/30000 s
Slow Shutter Yes
Day & Night IR cut filter
Zoom [PTZ channel] 40x optical, 16x digital
Max. Resolution 4096 × 1800
Lens Focus Auto, semi-auto, manual, rapid focus
Focal Length [Panoramic channel] 2.8 mm; [PTZ channel] 6.0 to 240 mm
Zoom Speed [PTZ channel] Approx. 5.6 s
FOV Horizontal FOV 56.6° to 1.8°, vertical FOV 33.7° to 1.0°, diagonal FOV 63.4° to 2.0°
Aperture Max. F1.0
Illuminator Supplement Light Type IR
Supplement Light Range Up to 250 m
Smart Supplement Light Yes
PTZ Movement Range (Pan) 360°
Movement Range (Tilt) -15° to 90° (auto flip)
Pan Speed Pan speed: configurable from 0.1° to 210°/s; preset speed: 240°/s
Tilt Speed Tilt speed: configurable from 0.1° to 150°/s, preset speed 200°/s
Proportional Pan [Panoramic channel]: no; [PTZ channel]: yes
Presets 300
Park Action Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D Positioning Yes
PTZ Status Display Yes
Preset Freezing Yes
Scheduled Task Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
Video Main Stream [Panoramic channel]:

50Hz:25fps (4096×1800,3840×1680,2720×1192),

60Hz: 30fps (4096×1800,3840×1680,2720×1192);

[PTZ channel]:

50Hz:25fps (2560x1440,1920×1080,1280×960,1280x720)

60Hz:30fps (2560x1440,1920x1080,1280x960,1280x720)
Sub-Stream [Panoramic channel]:
50Hz:25fps (704×320,512×232),
60Hz:30fps (704×320, 512×232);
[PTZ channel]:
50Hz: 25fps(704×576,640×480,352×288);
60Hz:30fps(704×480,640×480,352×240);
Third Stream [Panoramic channel]: no
[PTZ channel]:
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
Network Network Storage NAS (NFS, SMB/CIFS), ANR
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
User/Host Up to 32 users. 3 user levels: administrator, operator, and user
Security Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
Web Browser IE10-11, Chrome 57+, Firefox 52+, Safari 12+
Image Day/Night Switch Day, night, auto, scheduled-switch
Image Enhancement BLC, HLC, 3D DNR
Wide Dynamic Range (WDR) [Panoramic channel] no, [PTZ channel] 120 dB
Defog [Panoramic channel]: no; [PTZ channel]: optical defog
Privacy Mask Programmable polygon privacy masks (8 for panoramic channel, 24 for PTZ channel), mask color or mosaic configurable
SNR ≥ 55 dB
Interface Ethernet Interface 1 RJ45 10M/100M/1000M self-adaptive Ethernet port
Fiber Optical 1 FC interface, built-in fiber module, 1000M, TX1310/RX1550 nm wavelength, single module fiber, up to 20 km transmission distance
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC cards, up to 256 GB
Alarm 7 alarm inputs, 2 alarm outputs
Audio 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
Event Smart Event Line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, intrusion detection
Smart Tracking Manual tracking, auto-tracking, panorama tracking. Support patrol tracking among multiple detection scenes
Alarm Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
General Power 36 VDC, max. 135 W (including max. 12 W for IR);Hi-POE, max. 75 W
Operating Condition -40°C to 70°C (-40°F to 158 °F). Humidity 90% or less (non-condensing)
Wiper No
Material ADC12
Dimension Ø 433.5 mm x 430.4 mm (Ø 17.07" x 16.94")
Weight Approx. 18 kg (39.68 lb.)
