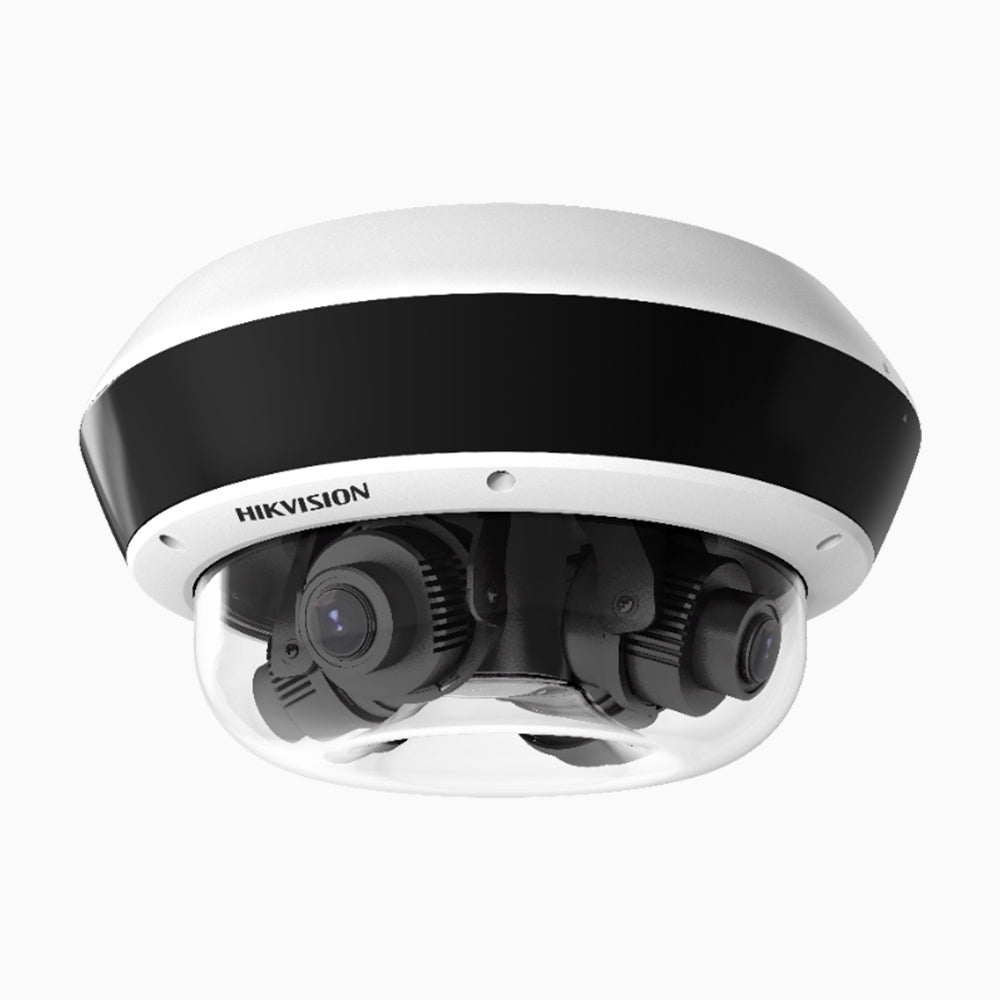

4-Directional Multisensor PoE Security Camera, 2560 x 1920 @ 25fps, IR Night Vision, IP67 & IK10, H.265+

4-Directional Multisensor PoE Security Camera, 2560 x 1920 @ 25fps, IR Night Vision, IP67 & IK10, H.265+

SKU: DS-2CD6D54FWD
$1,099.99
$1,099.99
$1,466.99

Fast, Free Shipping.

30-Day Money-Back Guarantee.

Lifetime Customer Support.

4-Directional Multisensor PoE Security Camera, 2560 x 1920 @ 25fps, IR Night Vision, IP67 & IK10, H.265+

4-Directional Multisensor PoE Security Camera, 2560 x 1920 @ 25fps, IR Night Vision, IP67 & IK10, H.265+

$1,466.99 $1,099.99
4-Directional Multisensor PoE Security Camera, 2560 x 1920 @ 25fps, IR Night Vision, IP67 & IK10, H.265+

4-Directional Multisensor PoE Security Camera, 2560 x 1920 @ 25fps, IR Night Vision, IP67 & IK10, H.265+

$1,466.99 $1,099.99

1/2.7” Progressive Scan CMOS
2560 x 1920 @ 25fps
FOV: horizontal 30° to 101°, vertical 22.4° to 73°, diagonal field of view: 37° to 137°
4 adjustable lenses in one camera cover up to a 360° field of view, ensuring zero-blind zone monitoring.
The monitoring tilt angle can also be adjusted.
Each lens has a resolution of up to 5 MP, capturing clear images.
More details can be displayed on a video wall.
A built-in heater provides ultra-low temperature start-up to -40℃.
IP67/IK10 water resistant and vandal proof, preventing water ingress for outdoor use.
FC interface: the camera can be connected by fiber optical cable for the transfer of data over long distances.
H.265+/H.265/H.264+/H.264 encoding: efficient compression technology saves storage space and reduces bandwidth requirements.

Specification

 Download DS-2CD6D54FWD Specification

Camera Image Sensor 1/2.7″ Progressive Scan CMOS
Max. Resolution 2560 x 1920
Min. Illumination Color: 0.006 Lux @ (F1.2, AGC ON), 0.010 Lux @ (F1.6, AGC ON),B/W: 0.002 Lux @ (F1.2, AGC ON); 0.003 Lux @ (F1.6, AGC ON),0 Lux with IR on
Shutter Time 1 s - 1/100,000 s
Day & Night IR Cut Filter
Angle Adjustment Four flexible lens in one track, slide range: -180° to 180°, tilt: 0° to 135°, rotate: 0° to 355°
Lens Focal Length & FOV 2.8mm to 12mm, Horizontal field of view: 30° to 101°,Vertical field of view: 22.4° to 73°,Diagonal field of view: 37° to 137°
Lens Mount Φ14
Aperture F1.6
Illuminator Supplement Light Type IR
Supplement Light Range 10 m to 30 m
IR Wavelength 850 nm
Video Main Stream 50 Hz: 25 fps (2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 × 720),60 Hz: 24 fps (2560 × 1920, 2048 × 1536, 1920 x 1080,1280 x 720)
Video Compression Main stream: H.265+/H.265/H.264+/H.264,Sub stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 16 Mbps
Image Image Settings Rotate mode, saturation, brightness, contrast, sharpness, and white balance are adjustable by client software or web browser
Day/Night Switch Day/Night/Auto/Schedule/Triggered by Alarm In (-S)
Wide Dynamic Range (WDR) 120 dB
Image Enhancement BLC, 3D DNR, EIS
Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Interface Ethernet Interface 1 RJ45 10 M/100 M/1000 M Ethernet port,1 RS-485 interface (-S),1 1000M FC fiber optical interface (-/NFC)
On-Board Storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Audio 1-ch 3.5 mm input (line in/Mic in), 1-ch 3.5mm output, dual-track, stereo
Alarm 2 inputs, 2 outputs (up to 24 VD, 1A or 110 VAC, 500mA )
Fiber Optical FC interface, single mode, single fiber, 20 km transmission distance, (Tx)1310 nm/ 1.25G, (Rx)1550 nm/1.25 G
Event Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Face Detection, audio exception detection, scene change detection, defocus detection
General Power 12 VDC ± 20%: 2.3 A, max. 28 W, 24 VAC ± 20%, 2.5 A, max. 50 to 60 Hz (for customization)，three-core terminal block
-IZ, -IZHS/NFC: Hi-PoE: 42.5 VDC to 57 VDC, 0.9 A to 0.6 A, max. 34W
-Z: PoE (802.3at): 42.5 VDC to 57 VDC, max. 17W
Material Aluminum alloy, engineering plastics
Dimension Ø290 mm × 145.5 mm (Ø11.42" × 5.73")
General Function One-key reset, anti-flicker, mirror, heartbeat, password protection, privacy mask, watermark, IP address filter
Protection IP67, IK10
