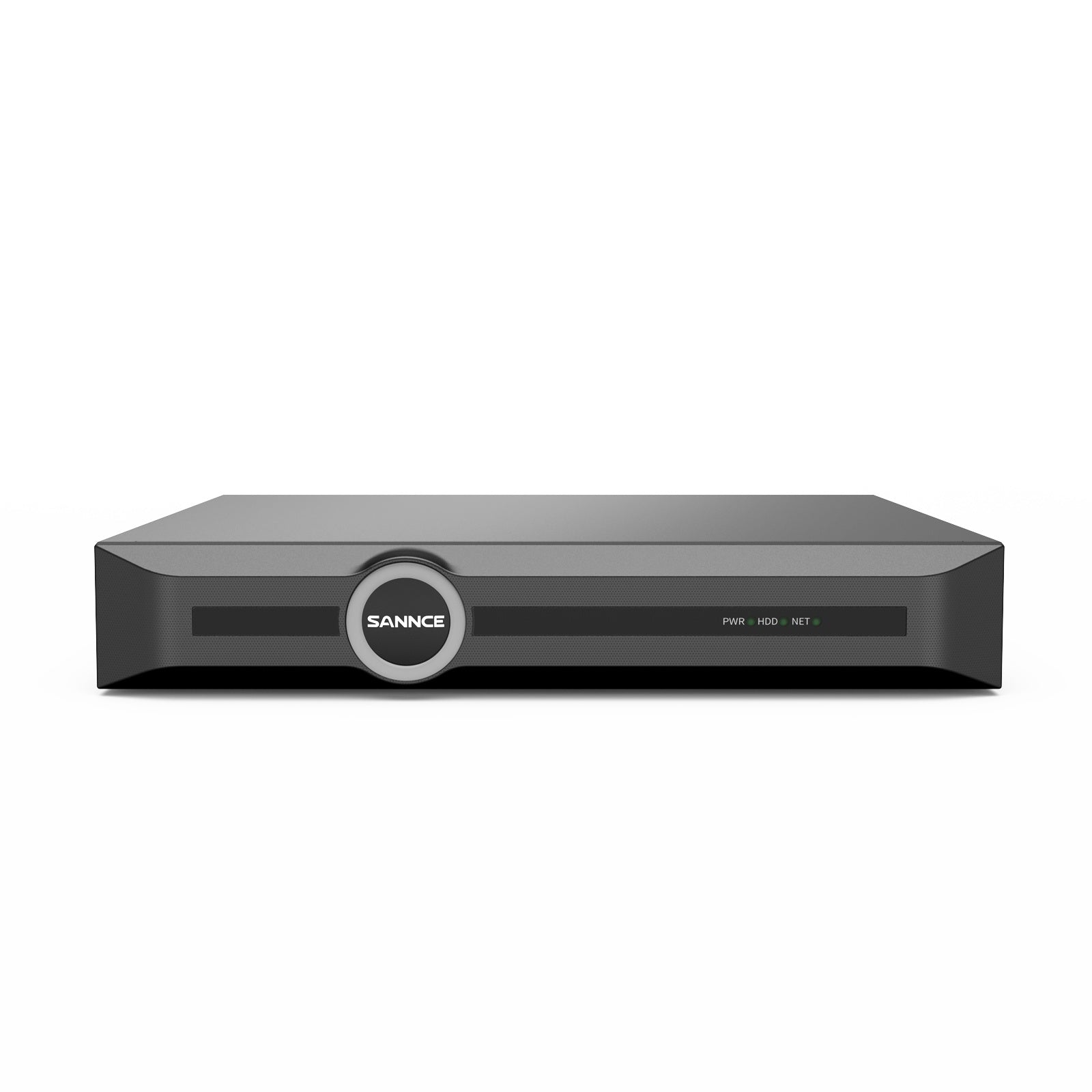

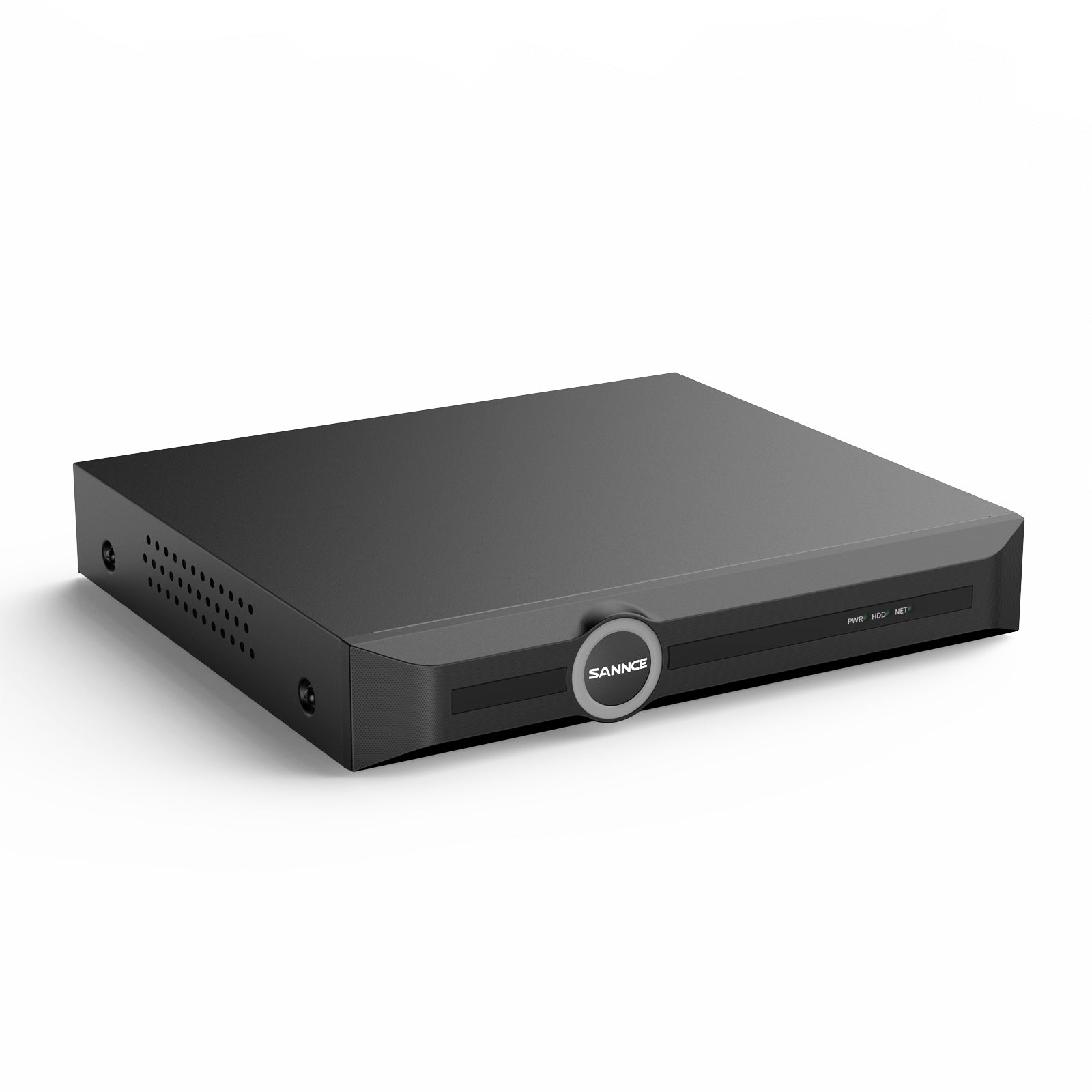

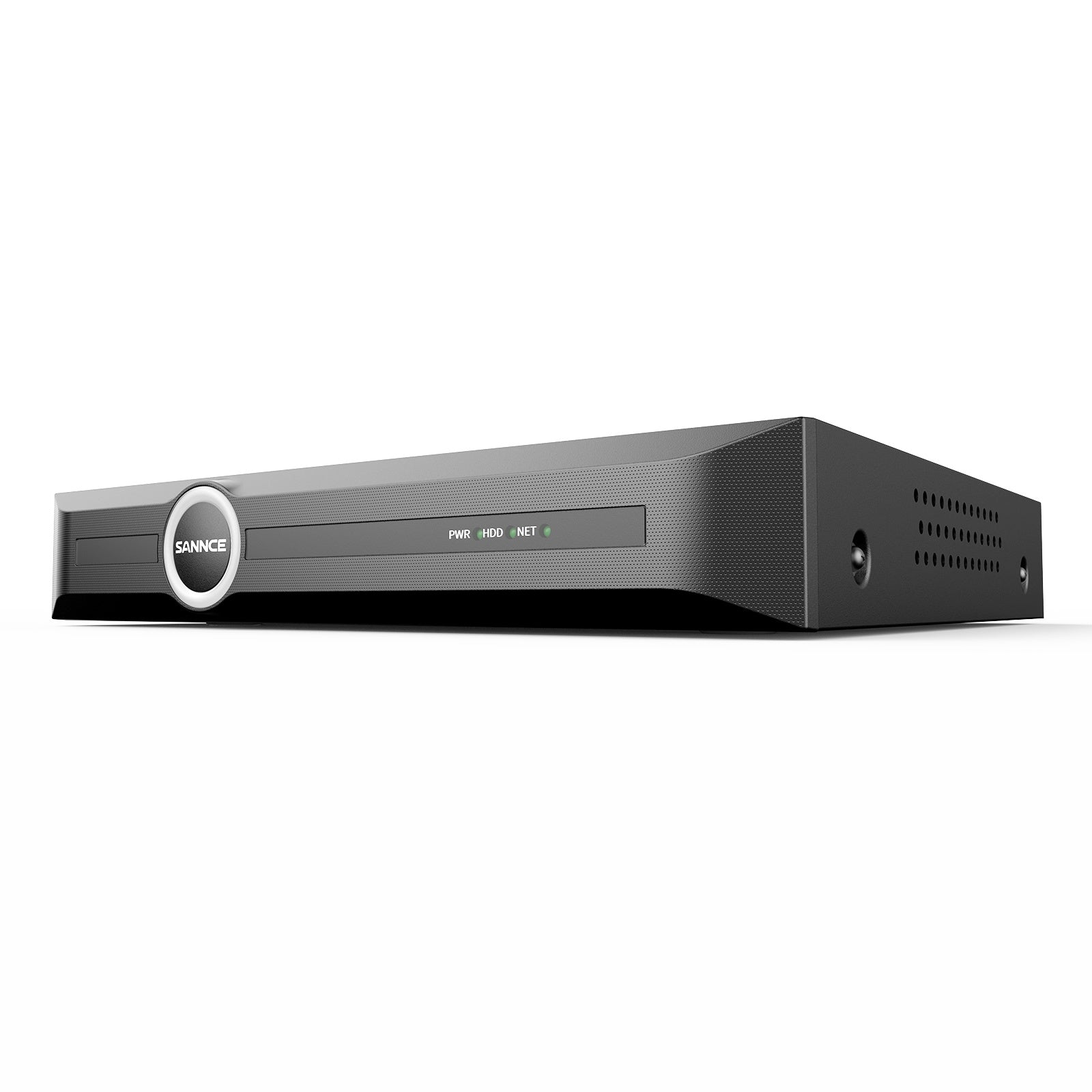

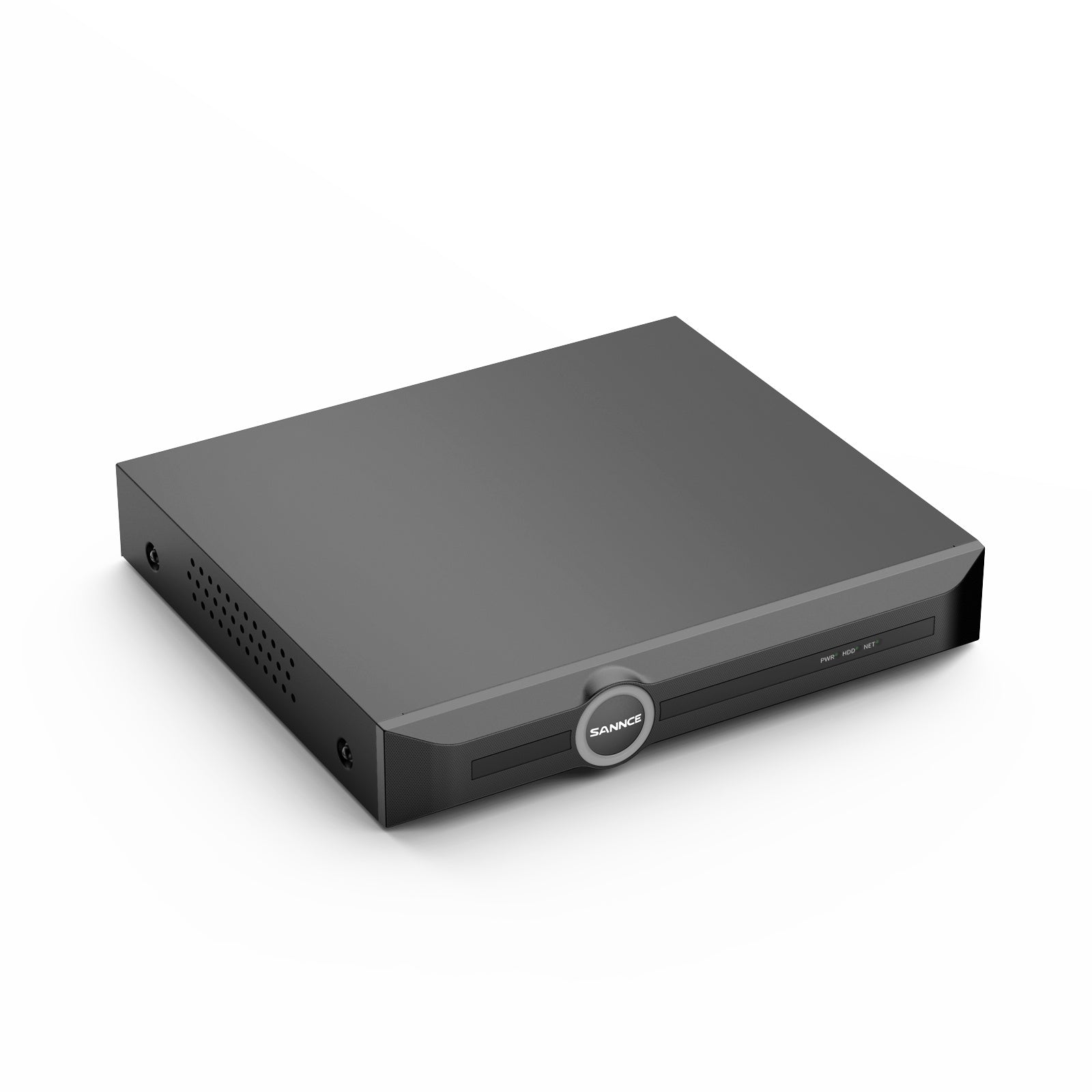

6MP 8 Channel S+265. PoE NVR
6MP 8 Channel S+265. PoE NVR
6MP 8 Channel S+265. PoE NVR
6MP 8 Channel S+265. PoE NVR
6MP 8 Channel S+265. PoE NVR

6MP 8 Channel S+265. PoE NVR

SKU: SU-N98PBM000-OP
$69.99
$69.99
HDD Capacity

Fast, Free Shipping.

30-Day Money-Back Guarantee.

Lifetime Customer Support.

6MP 8 Channel S+265. PoE NVR

6MP 8 Channel S+265. PoE NVR

$69.99
6MP 8 Channel S+265. PoE NVR
6MP 8 Channel S+265. PoE NVR
6MP 8 Channel S+265. PoE NVR
6MP 8 Channel S+265. PoE NVR
6MP 8 Channel S+265. PoE NVR

6MP 8 Channel S+265. PoE NVR

$69.99
HDD Capacity: NO HDD

HDMI/VGA Dual Output

Supports simultaneous HDMI and VGA output, with HDMI supporting up to 1080P resolution. This meets the needs of different display devices and facilitates local monitoring and presentations.

S+265 Compression Technology

Utilizes S+265 compression algorithm to reduce storage space by up to 75%. This allows the same capacity hard drive to store longer recordings, reduces the frequency of hard drive replacements, and minimizes storage costs. It also decreases network transmission buffering, improving recording efficiency.

Supports up to 6MP IPCs

Capable of connecting to network cameras with a maximum resolution of 6MP (6 million pixels), allowing for real-time preview, recording, and playback at 6MP. Compatible with various resolutions, including 6MP, 5MP, 4MP, 3MP, and 2MP, to meet different high-definition surveillance needs.

AI-based Human and Vehicle Detection

Supports IPCs with AI human and vehicle detection capabilities, reducing false alarms and improving the accuracy and reliability of surveillance. Important events are not missed.

Smart Playback

Enables quick location and playback of human and vehicle detection segments, improving playback efficiency and saving time and effort (IPC must support human and vehicle detection).

Hard Drive Support

Supports one hard drive with a maximum capacity of 6TB, ensuring sufficient storage for long-term recordings and providing reliable storage for surveillance data.

Multi-device Access

Supports simultaneous login and viewing on multiple devices, including smartphones, tablets, and computers. Users can access surveillance footage anytime, anywhere.

What's in the Box?

1X NVR

1X USB Mouse

1X Power Cable

1X DC 48V Power Adapter

1X 1M Network Cable

1X 1.8M HDMI Cable

1X User's Manual

Specification
NVR
(Model Number: N98PBM)
Video & Audio Decoding Format S+265; H.265; S+264; H.264
IP Video Input 8CH PoE
Video Output HDMI: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1440×900(60Hz),
(1080P)1920×1080(50Hz/60Hz),independent output
VGA: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1440×900(60Hz),
(1080P)1920×1080(50Hz/60Hz)
Audio G711A; G711U; ADPCM_DIV4
Incoming/outgoing Bandwidth 60/40 Mbps
Max Recording Resolution Up to 6MP@30fps(Frame rate depends on IP camera)：
6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×2, 3MP(30fps)×2, 1080P(30fps)×4, 720P(30fps)×8,
4CIF(30fps)×8
Max Playback Resolution Up to 6MP@30fps(Frame rate depends on IP camera)：
6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×1, 3MP(30fps)×2, 1080P(30fps)×3, 720P(30fps)×4
Record Playback Multi-channel Playback 4
Record Mode Alarm Recording; Schedule Recording
Storage Method Local HDD
Backup USB storage device
Playback Function Play/Pause/Stop/Slow/Speed/Backwards 30s/Forwards 30s/Full Screen/Backup (Video Editing)/Digital
Zoom
Alarm General Alarm Motion Detection; Mask Alarm; Alarm Input(IPC)
Exceptions Alarm Video Loss; IP Conflict; MAC Conflict; Network Disconnected; No Disk; Illegal Access; Disk Full; Disk R/W
Error; Recording Abnormal; Abnormal found in smart of disk; Abnormal temperature of the disk; PoE
Overload; Voltage Alarm(IPC); RTC Failure
Storage HDD 1 SATA Interface
HDD Capacity Up to 6 TB capacity for each HDD
Network Network Protocol ARP; DDNS; DHCP; DNS; Easy DDNS; HTTP; ICMP; IGMP; IPv4; IPv6; NTP; RTCP; RTP; RTSP; SSH; TCP/IP;
UDP; Unicast; UPnP
Mobile Phone Access Android; iOS; P2P
System Compatibility CGI; SDK
Web IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+

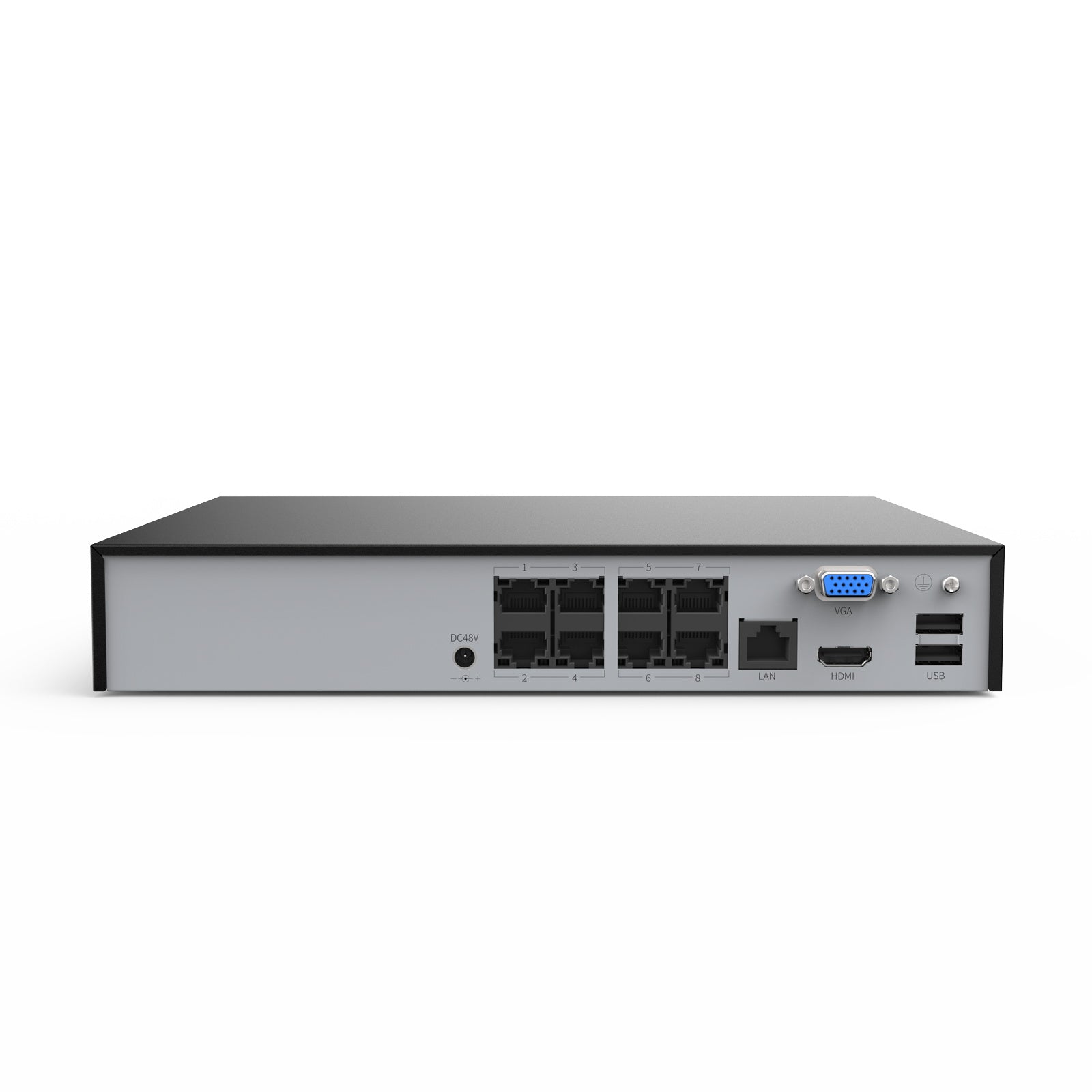

External Port USB 2×USB2.0
HDMI 1×HDMI
VGA 1×VGA
Network Interface 1×RJ-45, 10/100 Mbps self-adaptive Ethernet port
PoE PoE Interface 8×RJ45, 10/100 Mbps self-adaptive Ethernet port
PoE Budget 45W
Power per PoE Port 30W
Standard IEEE 802.3 af/at
General UI Language English; German; French; Italian; Spanish
Operating Power DC48V 1.35A
Power Consumption <10W(without HDD & without PoE)
Working Temperature 10 °C to 55 °C (14 °F to 131 °F)
Dimensions (W X H X D) 225 mm × 231 mm × 45.1 mm
Weight (Without Hard Disk) kg
